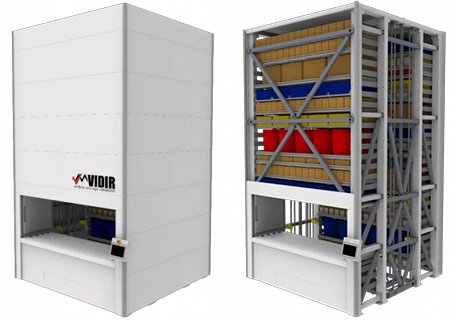

The Vidir Vertical Lift Module (or VLM) is Vidir’s revolutionary new automated storage and retrieval system that provides smart, adaptable storage to maximize density and further increase productivity. Making use of 2 tray towers, one in front and one in back, along with a center elevator, trays are extracted and presented quickly, efficiently, and at an ergonomic height. Storing the trays in vertical towers allows for a minimal footprint, saving floor space up to 85%.
Automatic Height Detection
The VLM makes use of cutting-edge technology and intelligent software to accurately measure the amount of storage space required by each tray, and then performs calculations to determine the most efficient storage location to maximize density every time items are stored or retrieved.
Intelligent Software
Along with maximizing density, Vidir's intelligent software ensures the storage and retrieval process is as smooth and efficient as possible. Pick times are kept to a minimum to increase productivity and remove costly bottlenecks.
Total Control
The VLM puts you in control of your inventory while shrinking your storage footprint. The easy-to-use software interface allows you to pick and stock item lists, integrate with your ERP system, run reports from any connected PC, and includes remote access for service diagnostics, which maximizes your productivity and ROI.

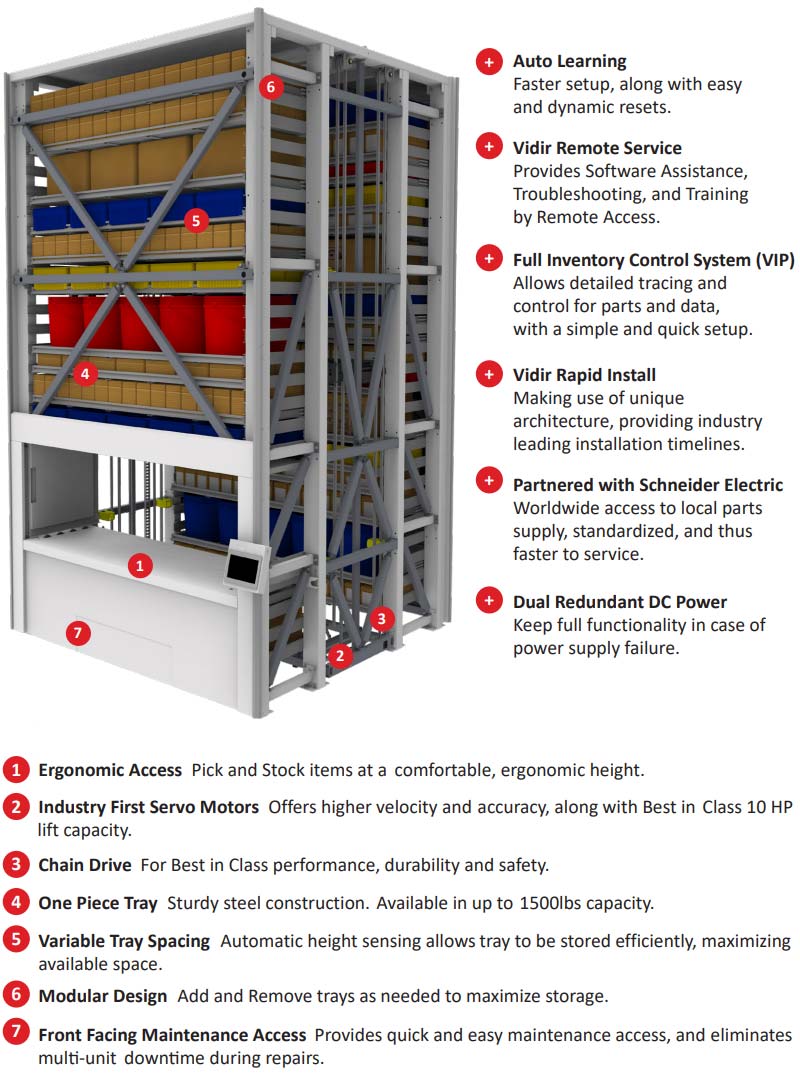

Best In Class Innovation
Vidir’s Vertical Lift Module is built to save you time. It provides ergonomic access, while maximizing storage space with variable spacing of trays. Built with industry leading engineering, front-facing maintenance access, and best in class innovations. Vidir’s VLM is on the cutting edge of vertical storage technology.
| A Standard Vertical Lift Module (VLM) includes the following |
|
| Motors | |
| Vertical Drive System - 10HP Vertical Servo Motor | |
| Horizontal Drive System - 2HP Servo Motor | |
| Controls | |
| Auto Retrieval Tray Control w/ 12″ HMI Touchscreen Display | |
| Right or Left Side Location | |
| Electrical | |
| Feeds from the top right of the machine | |
| 480V 3Phase 20 Amp | |
| Retrieval Speeds | |
| Vertical Lift Speed – Max 2.3ft per second | |
| Horizontal Feed Speed – Max 0.83ft per second | |
| Light Curtains: Included | |
| Variable Height Sensors: Included | |
| Overall Capacity: 132,000 lbs. | 60,000 kg | |
| Max Load Per Tray: 600 or 1,000 lbs Options Available | |
| Full Enclosure | |
| Color: VM Textured White | |
| cCSAus Mark | |
| 2 Year Manufacturer’s Warranty | |
| Specifications for Vertical Lift Module (VLM) |
|
| Tower Specifications | |
| Height | standard up to 30’ (9.15 m) |
| Depth | 94” | 115” (2388 mm | 2921 mm) |
| Width | 117” | 141” | 165” (2972 mm | 3581 mm | 4191 mm) |
| Footprint Specifications | |
| Depth | 97.25” | 118.25” (2470 mm | 3004 mm) |
| Width | 122” | 146” | 170” (3099 mm | 3226 mm) |
| Tray Specifications | |
| Pitch | 2.5” | 4.5” | 6” (63.5 mm | 114.3 mm | 152.4 mm) |
| Depth | 25.5” | 32.5” (648 mm | 826 mm) |
| Width | 96” | 120” | 144” (2438 mm | 3048 mm | 3658 mm) |
| Max Storage Height | 30” (762 mm) |
| Tray Storage Increment | 1.2” (30 mm) |
| Capacity Specifications | |
| Load Capacity | up to 132,000 lbs (60,000 kg) |
| Load per Tray | up to 1,500 lbs (680 kg) |
