Tire Carousel

Safe Handling • Easy Access • Maximum Storage
• Fast Retrieval • Small Footprint

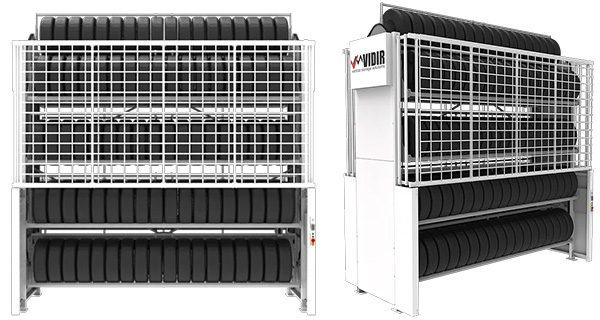

The Vidir Tire Carousel is a motorized vertical carousel designed for high density storage and retrieval of tires. The storage system will maximize overhead space to save up to 80% of your floor space with every tire accessible at the touch of a button. The Tire Carousel delivers tires directly to the operator at an ergonomic height reducing chances of injuries from lifting, bending, and pulling at sub-optimal positions.

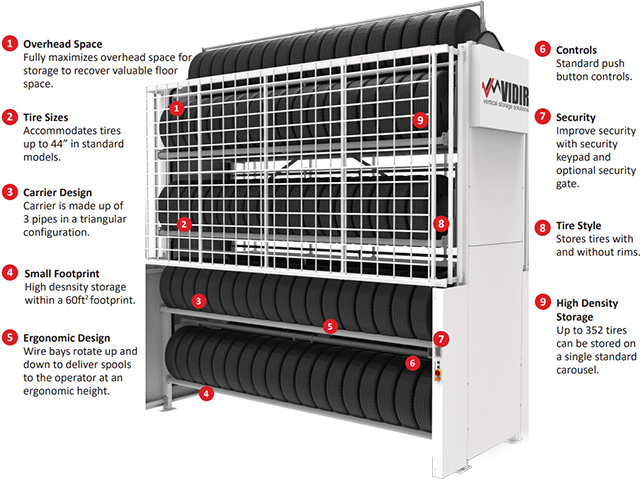

• Maximizes available storage by utilizing overhead space
• Up to 352 tires can be stored on a single standard carousel
• Accommodates tires up to 44” in standard models
• Store tires with or without rims
• Saves up to 80% of your floor space
• Increases workplace safety
• Built-to-fit specifications
• Improved security with security keypad and optional security gates
• RAL colors available
• Customize features and size to your application


Carrier Configurations
The Tire Carousel features a carrier that is made up of 3 pipes in a triangular configuration. The tires sit inside the bottom, with the top limiter bar providing support and a visual for tire sizes that will fit in the carousel. Tire dividers can be placed on the top bar to separate types of tires. Each carrier comes standard with 2 tire dividers.
